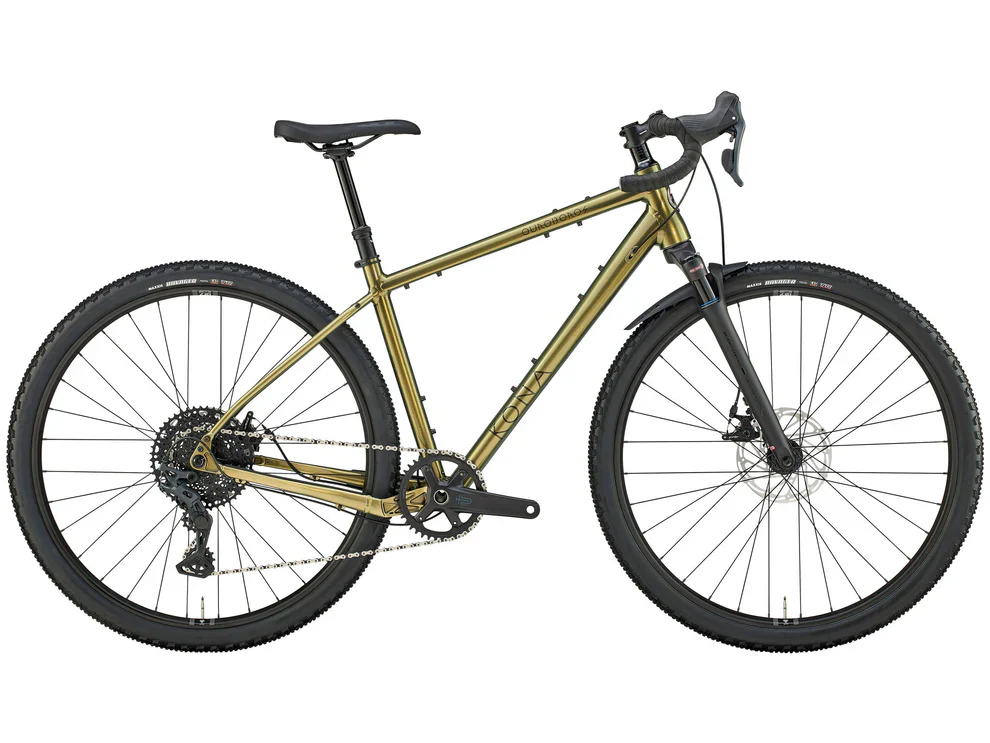

Kona Ouroboros

The aluminum Ouroboros is impressively capable, with componentry that is unwavering in reliable performance. Designed with the intention to stay off the grid, escape into the wilderness – worry free. We took the best parts of our award-winning gravel bikes, and the enchanting characteristics of our iconic mountain bikes, and delivered a drop bar bike that doesn’t rip by accident. Shred on, dear traveler, and let nothing hold you back.

Built around a robust Kona 6061 butted aluminum frame, this version of the Ouroboros blurs the line between gravel and mountain. It features a bump-eating Suntour GVX32 40mm suspension fork, a reliable Microshift Sword 1x10 drivetrain, a TranzX dropper post, and massive 700x50c Maxxis Ravager tires to keep you planted on the rowdiest terrain.



Key Features:

• Mountain Bike DNA: Equipped with a 125mm TranzX dropper post, wide 20-degree flared gravel bars, and mountain-bike-sized 180mm TRP brake rotors, this bike is built to confidently tackle steep descents and technical singletrack.



• Front Suspension: The Suntour GVX32 fork provides 40mm of travel to absorb harsh impacts, reduce hand fatigue, and keep your front wheel tracking smoothly over rocks, roots, and washboards.



• Microshift Sword Drivetrain: Purpose-built for drop-bar off-road riding, the 10-speed drivetrain pairs a 40t chainring with an 11-48t cassette for incredible climbing range, while the clutched derailleur keeps your chain secure through the rough stuff.



• Massive Traction: High-volume 700x50c Maxxis Ravager tires mounted to wide WTB ST i27 tubeless-ready rims provide incredible grip, floatation, and puncture resistance when the trail gets loose and chunky.



• Limitless Bikepacking Potential: With its durable butted aluminum frame and comfortable upright geometry, the Ouroboros is ready to be loaded up with bags and gear for your most ambitious off-grid overland adventures.



---

Technical Specifications

Component	Specification
Frame Material	Kona 6061 Aluminum Butted
Fork	Suntour GVX32 40mm travel, Tapered, 100x12mm
Rims	WTB ST i27 TCS 2.0
Front Hub	Formula 100x12mm 6-bolt
Rear Hub	Formula 142x12 6-bolt, standard road 11spd freehub body
Spokes	Stainless Black 14g
Front Tire	Maxxis Ravager EXO TR 700x50c
Rear Tire	Maxxis Ravager EXO TR 700x50c
Crankset	Microshift Sword
Chainring	40t 10sp narrow-wide
Bottom Bracket	Prowheel PF86.5
Rear Derailleur	Microshift Sword Long Cage w/ Clutch
Cassette	Microshift Sword 11-48t 10spd
Chain	KMC X10
Shifters	Microshift Sword left dropper/brake and right brake/shifter
Brakes	TRP Spyre C
Front Brake Rotor	TRP 180mm
Rear Brake Rotor	TRP 180mm
Handlebars	Kona Gravel 20-degree flare, 48: 440mm; 50: 460mm; 52-54: 480mm; 56: 500mm; 58: 520mm
Bar Tape	Kona Cork Tape
Stem	Kona Gravel 6-degree rise, 48-52: 50mm; 54-58: 60mm
Headset	FSA No.57B
Seatpost	TranzX Dropper +RAD Internal 31.6mm 125mm travel
Seat Clamp	Kona 34.9
Saddle	WTB Volt

All specifications subject to change without notice

---

Sizing Guide

Rider Height	Suggested Frame Size
4'10" - 5'1"	48cm
5'0" - 5'3"	48-50cm
5'2" - 5'7"	48-52cm
5'6" - 5'10"	52-54cm
5'9" - 6'0"	54-56cm
5'11" - 6'2"	54-58cm
6'1" - 6'5"	56-58cm

Sizing

Available in multiple sizes to fit a wide range of riders.
Contact us if you need help choosing the correct size.

---

🛒 Ready to Ride?

Order your Kona Ouroboros today and experience one of the most respected mountain bikes ever made.
